01 / WATCH
Watch without getting up.
Play, pause, seek, change the volume. Map the shortcuts your player supports and the PC answers like a TV.
SpacePlay / pause ← →Seek
ESP32-C3 · Open-source firmware · GPL-3.0
A $5 upgrade:
your Bluetooth remote
now runs your PC.
Streaming, vibe coding, presenting, shortcuts.
Hand your everyday keys to the remote beside you.
No custom keyboard driver on Windows No system driver patched or injected All 13 RC003 keys supported
Already have a compatible remote? An ESP32-C3 board costs about $5 and a remote about $10; a full set runs about $15.
Prices are project estimates. Check compatibility before you buy.
The remote on the left is clickablePress OK or an arrow; the PC reacts at once
DEMORC003Try OK and the arrow keys
TONIGHT, TAKE IT SLOW.PC on the desk.
Movie on the couch.
Movie on the couch.
24:18 / 64:00 60%
~/workspace › AI ASSISTANT
Turn this idea into a web page for me.
› Map OK to Enter
STANDARD BLUETOOTH HIDPC
CORE-ESP32
Local bridge · standard keyboard output
Local bridge · standard keyboard output
OKpress once to play / pause
BLE IN → ESP32-C3 → HID OUTBrowser simulation · not live device data
~$5 dev board
Give the remote you already own a second life
No custom driver on Windows
Standard Bluetooth HID; the system keyboard driver stays untouched
All 13 RC003 keys supported
Special keys are converted on the board before they are sent
Remap from the browser
Single keys or combos, however you work
01 / SCENARIOS
From the couch to the desk.
No new workflow to learn.
Just the shortcuts you already use, in your hand.
02 / CREATE
Vibe coding, confirm in hand.
Map confirm, cancel or any combo to the remote. The voice key is just another shortcut — no microphone audio is streamed.
EnterConfirm EscCancel Custom
03 / PRESENT
Advance the deck from anywhere.
Flip slides, step through photos, control music. Set the shortcuts once and keep your pace away from the keyboard.
← →Flip F5Start slideshow
Bluetooth remotesends raw key codes
ESP32-C3translates and forwards locally
A plain keyboard to your PCstandard Bluetooth HID reports
02 / DEVICE INTERFACE
Remap keys and read status in the browser.
See the real device UI first, then try it yourself.
Xiaomi remotes use a preset; other remotes are learned key by key.

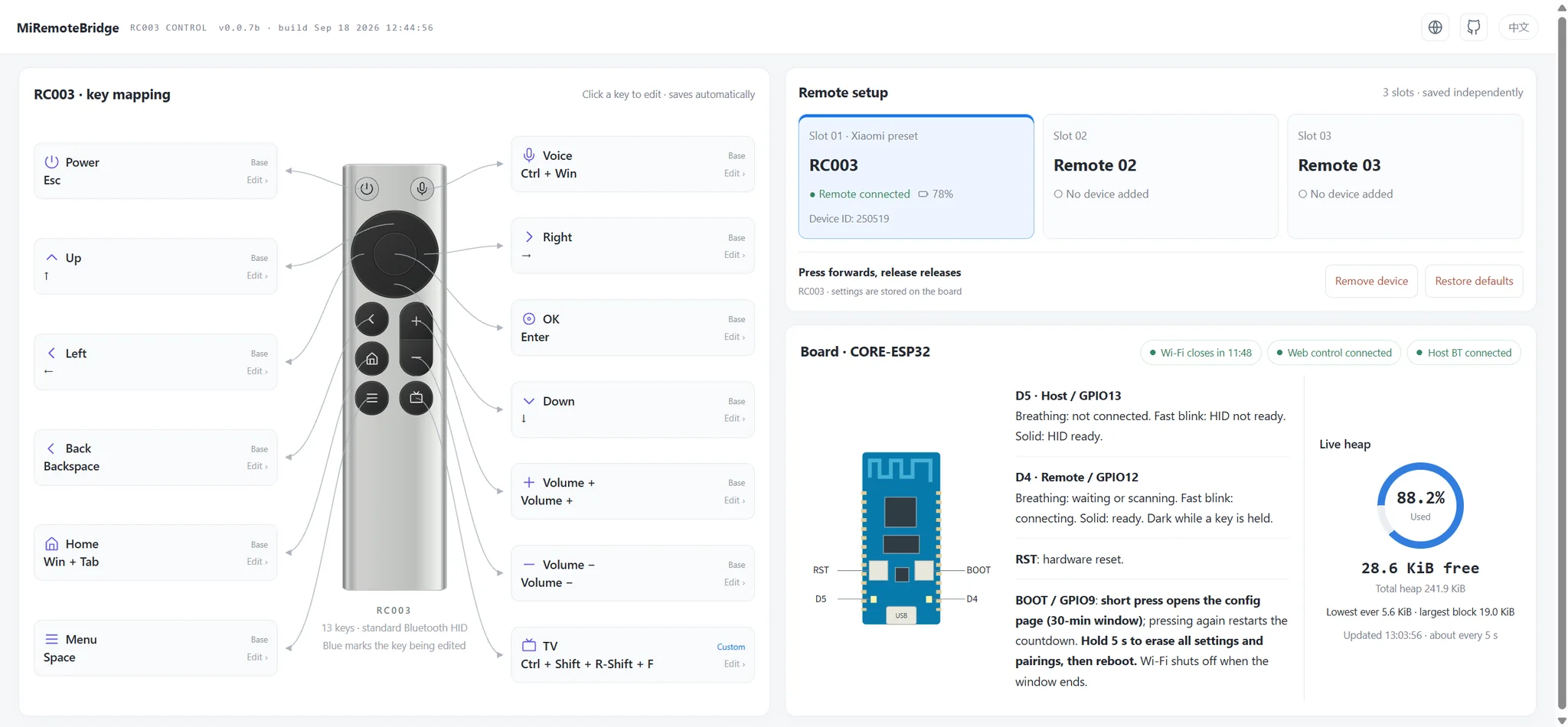

Real device UI
Xiaomi RC003 · preset mapping
Key mappings, remote settings and runtime status on one page.
MiRemoteBridge / device config UIReal screenshot · click to enlarge
01
13 keys, edit any of them
Every physical key gets a card: single keys, combos or media keys, as you like.
02
3 slots, saved separately
One Xiaomi preset and two learning slots, each keeping its own mapping and settings.
03
Connection and runtime status in one place
Check the Bluetooth link, the Wi-Fi window, free heap and the board pinout.
Try it yourself
Third-party remote · key-by-key learning
It plays automatically; click anything to take over.
Every new key it finds adds an editable card.
CMCC_Voice_Remote · key learning
Learned 0 / 128
Start from an empty key table
Press any key on the remote and its card shows up here.
Scroll here to start the demo, or press the remote yourself.
BLE REMOTE
Generic Bluetooth remote
Remote connected (simulated)
One press,
One press,
one more card.
Click the remote to take over any time, then open a new card to set its shortcut.
Pressing the same key again only highlights its card; nothing is added twice.
01Press a key
02Learn it
03Set a shortcut
A browser demo; no real device is connected. Autoplay stops as soon as you interact, and “Restart” clears the cards and mappings on this page before replaying it.
03 / BUILT TO BE SIMPLE
Install less, use more.
The bridging happens on the board; your PC just sees a standard Bluetooth keyboard. Open the web page only when you want to change something.
Cheap to build
About $5 for the board, plus a compatible Bluetooth remote at around $10 — ideally one you already own.
Windows drivers untouched
It connects as a standard Bluetooth HID device and never modifies, replaces or injects a keyboard driver, which keeps it clear of anti-cheat, antivirus and system-stability trouble.
Configured in the browser
Connecting, Wi-Fi setup and key mapping each have their own entry. A device that already runs the firmware never needs reflashing just to change Wi-Fi.
Every RC003 key works
All 13 keys are supported, including the special ones Windows usually cannot read; the board converts them to standard HID before sending them on.
Keys forwarded locally
The key path from remote to PC runs over Bluetooth; the config page’s Wi-Fi only opens inside its own time window.
Open source, keep hacking
The firmware ships under GPL-3.0-or-later, with readable source and config so you can keep improving it.
04 / COMPATIBILITY
Check compatibility before you build.
The status below comes from the project README;
platforms that were not verified are not claimed as supported.
| Role | Device / platform | Project record |
|---|---|---|
| Board | ESP32-C3 · about $5 | Verified · the only supported MCU |
| Remote | Xiaomi Bluetooth Remote 2 Pro · RC003 | Verified · 13 keys + battery |
| Remote | China Mobile · CMCC_Voice_Remote | Verified · some physical keys do not respond |
| Remote | Other standard BLE remotes | Learning mode · verify per model |
| PC | Windows 10 / 11 | Verified |
| PC | Linux / macOS | Not verified |
| Mobile | iPhone / iPad · iOS | Not supported |
Bluetooth HID support on your PC and the browser requirement for the USB connection are two different things; the section below checks this browser for Web Serial.
05 / GET CONNECTED
Plug in USB, then click “Connect device”.
A blank board gets the installer; a device that already runs the firmware can update, join Wi-Fi, show logs or open its config page.
1Pick a serial port
2Install / Wi-Fi
3Open the config page
ESP Web Tools · official flow
Plug the board in and connect once.
Once you pick the port, the official component recognizes the device: a blank board is offered MiRemoteBridge; an existing device gets update, Wi-Fi, logs and its config page.
Loading the official component…
Firmware install optionsRarely needed
Erase installs and factory resets are still confirmed in the official ESP Web Tools dialog.
Checking Web Serial and the official component…
Wi-Fi already closed, or unsure which install to pick?
If the official dialog says Wi-Fi is closed, tap BOOT on the board and try again. Keep “Full firmware” for everyday use; “App only” is for devices that already run MiRemoteBridge with an unchanged partition table.
